Racktables API

29-04-2025 Tags: services

sudo apt install python3.10-venv
python3 -m venv venv
source venv/bin/activate
pip install -r requirements.txt

• requirements.txt

mysql-connector-python

• Chạy hai file check để xem liệu có vấn đề gì không tương thích với db hay không (thay đổi đúng user, password để có thể log vào db)

nano check.py

import mysql.connector
import sys

# Define required tables and their columns
required_structure = {
    'Attribute': ['id', 'name'],
    'Dictionary': ['dict_key', 'dict_value'],
    'Object': ['id', 'name', 'label', 'objtype_id', 'asset_no', 'has_problems', 'comment'],
    'AttributeValue': ['object_id', 'object_tid', 'attr_id', 'string_value', 'uint_value', 'float_value'],
    'IPv4Allocation': ['object_id', 'ip', 'name', 'type'],
    'TagTree': ['id', 'tag'],
    'TagStorage': ['entity_realm', 'entity_id', 'tag_id', 'tag_is_assignable', 'user', 'date']
}

# Connect to the database
try:
    db = mysql.connector.connect(
        host="localhost",
        user="racktables",
        password="", #NHẬP PASS Ở ĐÂY
        database="racktables"
    )
    cursor = db.cursor()
    print("Connected to database.")
except mysql.connector.Error as e:
    print(f"Error connecting to database: {e}")
    sys.exit(1)

# Function to fetch all existing tables
def get_existing_tables():
    cursor.execute("SHOW TABLES")
    tables = [row[0] for row in cursor.fetchall()]
    return tables

# Function to fetch all columns for a table
def get_columns(table):
    cursor.execute(f"DESCRIBE {table}")
    columns = [row[0] for row in cursor.fetchall()]
    return columns

# Start checking
existing_tables = get_existing_tables()
missing_tables = []
missing_columns = {}

for table, expected_columns in required_structure.items():
    if table not in existing_tables:
        missing_tables.append(table)
    else:
        existing_columns = get_columns(table)
        missing = [col for col in expected_columns if col not in existing_columns]
        if missing:
            missing_columns[table] = missing

# Reporting
if missing_tables:
    print("Missing tables:")
    for table in missing_tables:
        print(f" - {table}")
if missing_columns:
    print("Missing columns:")
    for table, columns in missing_columns.items():
        print(f" - {table}: missing {', '.join(columns)}")

if not missing_tables and not missing_columns:
    print("✅ Database structure OK.")
else:
    print("\n❌ Database structure mismatch detected.")
    sys.exit(1)

# Clean up
cursor.close()
db.close()

python3 check.py

Output:

• File check thứ 2. Cần rename file csv thành page5.csv

nano check2.py

import mysql.connector
import csv
import sys

# Fields to ignore when validating attributes
ignore_fields = {'STT', 'Server', 'Type', 'ens160', 'ens192', 'Tags', 'OS version'}

# Connect to database
try:
    db = mysql.connector.connect(
        host="localhost",
        user="racktables",
        password="StrongPassword",  # ĐỔI PASS Ở ĐÂY
        database="racktables"
    )
    cursor = db.cursor()
    print("Connected to database.")
except mysql.connector.Error as e:
    print(f"Error connecting to database: {e}")
    sys.exit(1)

# 1. Check if tables and columns exist (basic structure check)
required_structure = {
    'Attribute': ['id', 'name'],
    'Dictionary': ['dict_key', 'dict_value'],
    'Object': ['id', 'name', 'label', 'objtype_id', 'asset_no', 'has_problems', 'comment'],
    'AttributeValue': ['object_id', 'object_tid', 'attr_id', 'string_value', 'uint_value', 'float_value'],
    'IPv4Allocation': ['object_id', 'ip', 'name', 'type'],
    'TagTree': ['id', 'tag'],
    'TagStorage': ['entity_realm', 'entity_id', 'tag_id', 'tag_is_assignable', 'user', 'date']
}

def get_existing_tables():
    cursor.execute("SHOW TABLES")
    return [row[0] for row in cursor.fetchall()]

def get_columns(table):
    cursor.execute(f"DESCRIBE {table}")
    return [row[0] for row in cursor.fetchall()]

existing_tables = get_existing_tables()
missing_tables = []
missing_columns = {}

for table, expected_columns in required_structure.items():
    if table not in existing_tables:
        missing_tables.append(table)
    else:
        existing_columns = get_columns(table)
        missing = [col for col in expected_columns if col not in existing_columns]
        if missing:
            missing_columns[table] = missing

if missing_tables or missing_columns:
    print("\n❌ Basic database structure problem detected:")
    if missing_tables:
        print("Missing tables:", missing_tables)
    if missing_columns:
        for table, cols in missing_columns.items():
            print(f"Missing columns in {table}: {cols}")
    sys.exit(1)
else:
    print("✅ Basic table structure check passed.")

# 2. Read header from CSV to get dynamic attribute fields
csv_file = 'page5.csv'

try:
    with open(csv_file, 'r') as file:
        reader = csv.reader(file)
        headers = next(reader)
except FileNotFoundError:
    print(f"\n❌ CSV file '{csv_file}' not found.")
    sys.exit(1)

# Dynamic attributes to check (everything except ignored fields)
attributes_to_check = [header.strip() for header in headers if header.strip() not in ignore_fields]

# 3. Load attribute map
cursor.execute("SELECT id, name FROM Attribute")
attribute_map = {name: id for id, name in cursor.fetchall()}

# Check required attributes dynamically
missing_attributes = [attr for attr in attributes_to_check if attr not in attribute_map]
if missing_attributes:
    print("\n❌ Missing required attributes:", missing_attributes)
    sys.exit(1)
else:
    print("✅ All dynamic attributes from CSV found in Attribute table.")

# 4. Check type (example 'VM') exists in Dictionary
cursor.execute("SELECT dict_key FROM Dictionary WHERE dict_value = %s", ('VM',))
type_row = cursor.fetchone()
if not type_row:
    print("\n❌ Required VM type 'VM' not found in Dictionary table.")
    sys.exit(1)
else:
    print(f"✅ VM type 'VM' found with dict_key {type_row[0]}.")

# 5. Check Tags and OS Versions existence
tags_in_csv = set()
os_versions_in_csv = set()
servers_in_csv = []

with open(csv_file, 'r') as file:
    reader = csv.DictReader(file)
    for row in reader:
        servers_in_csv.append(row['Server'].strip())
        tags_in_csv.add(row['Tags'].strip())
        os_versions_in_csv.add(row['OS version'].strip())

# Check Tags
missing_tags = []
for tag in tags_in_csv:
    if tag:
        cursor.execute("SELECT id FROM TagTree WHERE tag = %s", (tag,))
        if not cursor.fetchone():
            missing_tags.append(tag)

if missing_tags:
    print("\n❌ Missing Tags in database:", missing_tags)
    sys.exit(1)
else:
    print("✅ All Tags from CSV found in TagTree.")

# Check OS Versions
missing_os_versions = []
for os_version in os_versions_in_csv:
    if os_version:
        cursor.execute("SELECT dict_key FROM Dictionary WHERE dict_value LIKE %s", (f"%{os_version}%",))
        if not cursor.fetchone():
            missing_os_versions.append(os_version)

if missing_os_versions:
    print("\n❌ Missing OS Versions in database:", missing_os_versions)
    sys.exit(1)
else:
    print("✅ All OS Versions from CSV found in Dictionary.")

# 6. Check for duplicate server names in Object table
cursor.execute("SELECT name FROM Object")
existing_servers = {row[0] for row in cursor.fetchall()}

duplicate_servers = [server for server in servers_in_csv if server in existing_servers]

if duplicate_servers:
    print("\n❌ The following servers already exist in the database:")
    for name in duplicate_servers:
        print(f" - {name}")
    sys.exit(1)
else:
    print("✅ No duplicate server names found in Object table.")

# Final success
print("\n✅✅✅ FULL DATABASE AND CSV VALIDATION PASSED ✅✅✅")

# Clean up
cursor.close()
db.close()

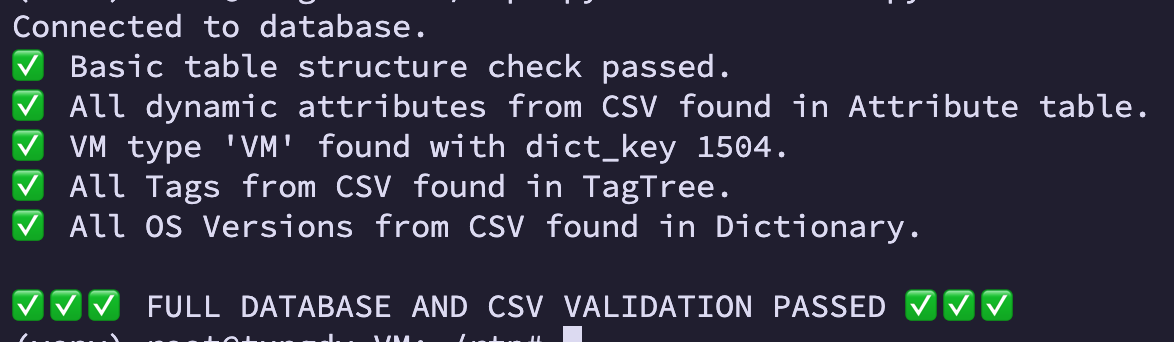

Output:
